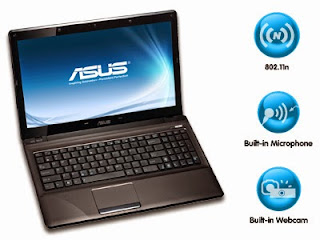

ASUS K52F Manual

ASUS K52FYou are reading the Notebook PC ASUS K52F User Manual. This User’s Manual provides information regarding the various components in the Notebook PC and how to use them. The following are major chapters of this User’s Manual: Introduces you to the Notebook PC and this User’s Manual. Gives you information on the Notebook PC’s components. Gives you information on getting started with the Notebook PC. Gives you information on using the Notebook PC’s components. Introduces you to optional accessories and gives additional information.

ASUS K52F Specifications
Processor Intel® Core™ i5 430M/450M/520M/540M Processor
Intel® Core™ i3 330M/350M/370M Processor
Intel® Pentium® Dual-Core P6000 Processor
Operating System Windows 7 Ultimate
Windows 7 Professional
Windows 7 Home Premium
Windows 7 Home Basic
This version contains all product updates (SP1)
Chipset  Intel® HM55 Express Chipset
Memory  DDR3 1066 MHz SDRAM, 2 x SO-DIMM socket for expansion up to 8 G SDRAM
Display  15.6" 16:9 HD (1366x768) LED Backlight
Graphic  Integrated Intel® GMA HD
Storage 2.5" SATA
640GB 5400rpm
500GB 5400rpm/7200rpm
320GB 5400rpm/7200rpm
250GB 5400rpm
Optical Drive Blu-Ray DVD Combo (Optional) Super-Multi DVD
Card Reader  4 -in-1 card reader ( SD/ MS/ MS Pro/ MMC)
Camera  0.3 Mega Pixel web camera
Networking  Integrated 802.11 b/g/n
Interface 1 x Microphone-in jack
1 x Headphone-out jack
1 x VGA port/Mini D-sub 15-pin for external monitor
3 x USB 2.0 port(s)
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
Audio Built-in Speakers And Microphone
Altec Lansing® Speakers
SRS Premium Sound
Battery  6Cells : 4400 mAh 48.84 Whrs
Power Adapter Output : 19 V DC, 3.42 A, 65 W
Input : 100 -240 V AC, 50/60 Hz universal
Dimensions  38 x 25.5 x 3.45 ~3.57 cm (WxDxH)
Weight  2.62 kg (with 6 cell battery)
Manufacturer Warranty 2-year limited International hardware warranty. *different by country
On-line problem resolution through web interface (BIOS, Driver update)
OS (Windows 7 ) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
Download ASUS K52F Manual here
